YT28 Pneumatic Rock Drill With Air Leg
YT28 Pneumatic Rock Drill With Air Leg
YT28 air leg rock drill suitable for rock drilling operations in large mines, medium mines and tunnels.
- Release Date:March 15 , 2023
- Category: Mining Drill Equipment
- Tags: air rock drill | rock hammer drill | air leg rock drill |
YT28 Pneumatic Rock Drill With Air Leg Parameter
|
Model |
YT28 |
|
Cylinder diameter |
80mm |
|
Piston stroke |
60mm |
|
Impact energy |
≥70（0.63Mpa） |
|
Impact frequency of drilling |
≥37（0.63Mpa） |
|
Drilling speed |
≥470（0.63Mpa） |
|
Air consumption |
≤81.6（0.63Mpa） |
|
Air pipe inner diameter |
25mm |
|
Water pipe inner diameter |
13（10）mm |
|
Working pressure |
0.63Mpa |
|
Working water pressure |
0.2Mpa |
|
Applicable hole diameter |
34-45mm |
|
Maximum hole depth |
5m |
|
Air consumption/per meter |
10.2×103L/m |
|
Drill rod tail size |
H22×108 |
|
Working temperature |
-30°~+50° |
|
Machine weight |
27.8kg |
|
Dimension |
L670×W240×H210mm |

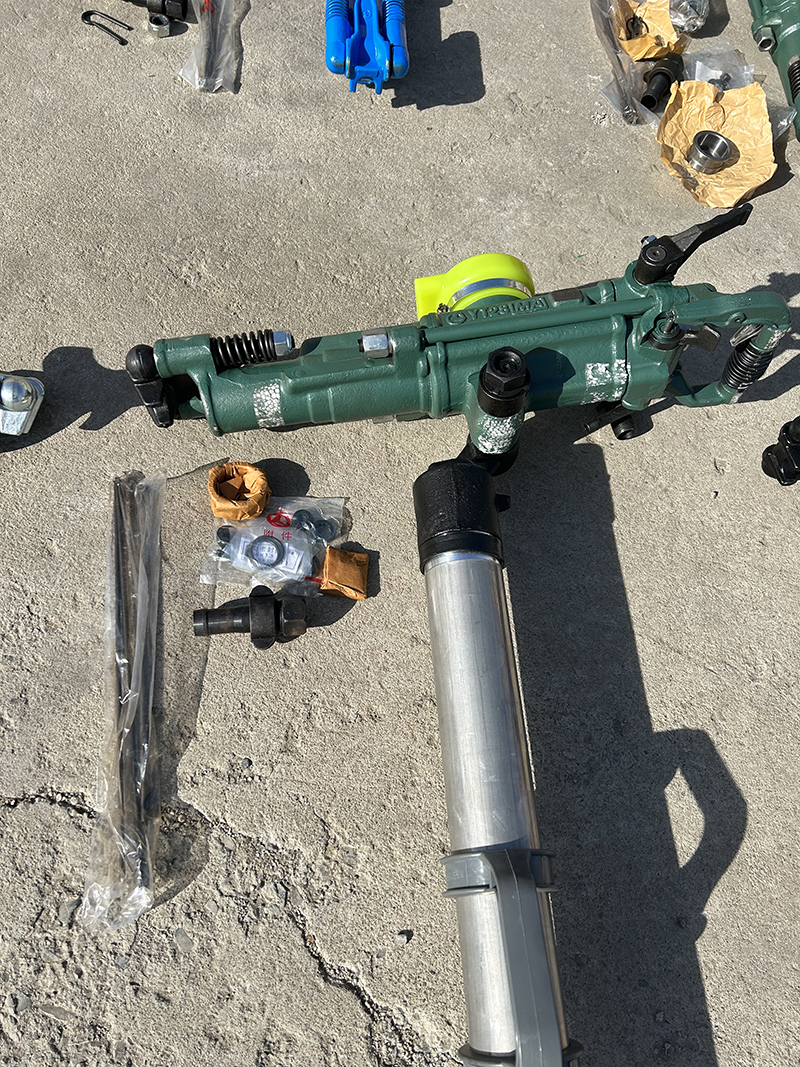

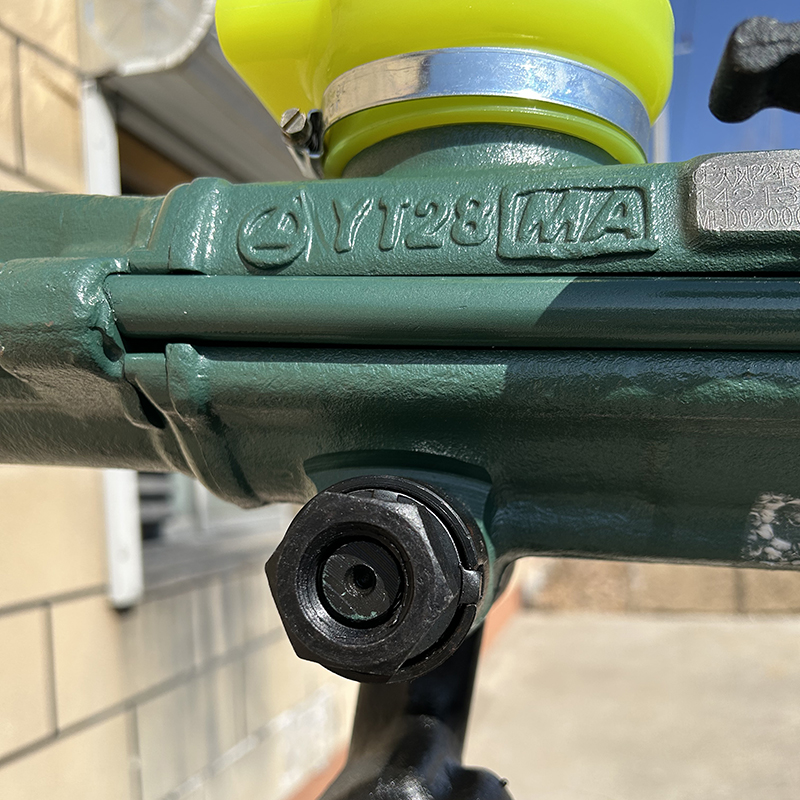

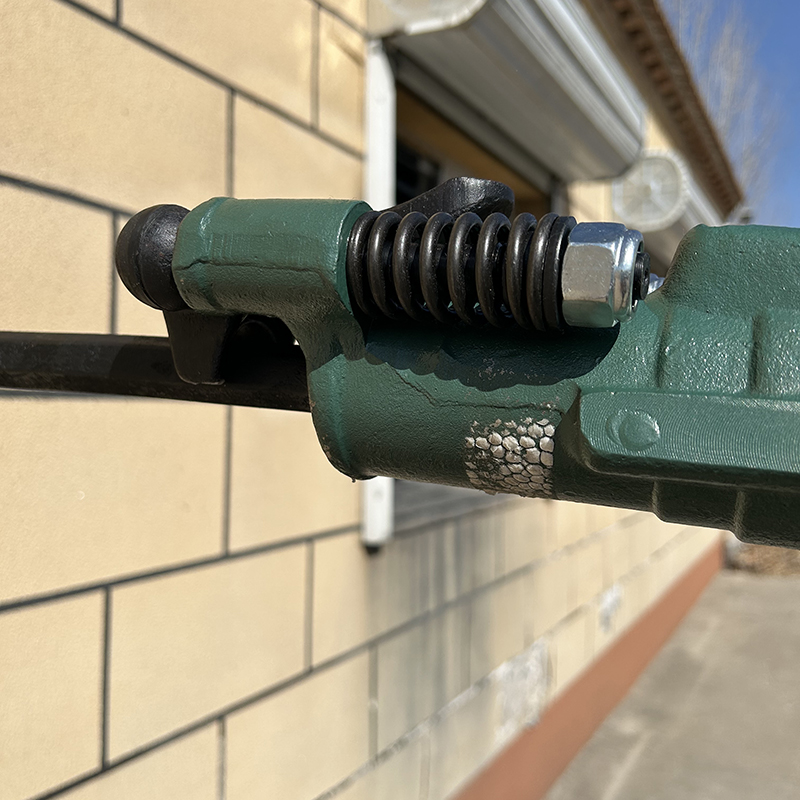

YT28 Pneumatic Rock Drill With Air Leg Images
Contact us for a quote！
