Y19A Pneumatic Hand Held Rock Drill
Hand held rock drill model Y19A is mainly used for drilling, secondary blasting and
other work in mines, railway and water conservancy projects. It is designed for both
dry and wet rock drilling on hard and medium hard rock, vertically downwards or
inclined blast hole. For wet drilling, the water pipe nut must be replaced with the air
pipe nut and the water pipe. The rock drill can be equipped with pusher leg FT100
and FY200A lubricator
Y19A Pneumatic Hand Held Rock Drill Parameter
Pneumatic rock drill Y19A
Weight
19
kg
Dimension (L x W x H)
600 x 534 x 157
mm
Cylinder diameter
65
mm
Piston stroke
54
mm
Working pressure
4-5
Bar（e）
lmpact energy (at 5.0 bar (el)
≥40
J
Impact energy (at 4.0 bar (el)
≥28
J
Air consumption (at 5.0 bar (el))
≤43
L/s
Air consumption (at 4.0 bar (el))
≤37
L/s
lmpact frequency (at 5.0 bar (e))
≥35
Hz
Impact frequency (at 4.0 bar (e))
≥28
Hz
Torque (at 5.0 bar (el))
≥12.5
Nm
Torque (at 4.0 bar (e))
≥9.5
Nm
Noise level
≤121
dB(A)
Water pressure
working pressure -1
Bar(e)
Air hose inner diameter
19
mm
Water hose inner diameter
13
mm
Drilling diameter
34 40
mm
Max drilling depth
5
m
Working temperature
-30 to +50
°C
Shank size
H22x108
mm

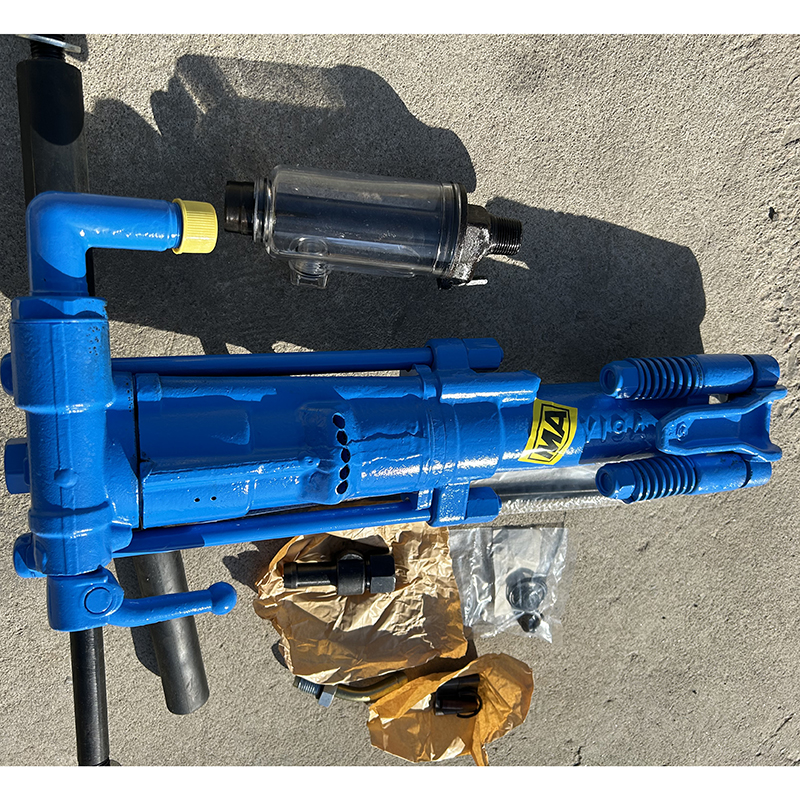

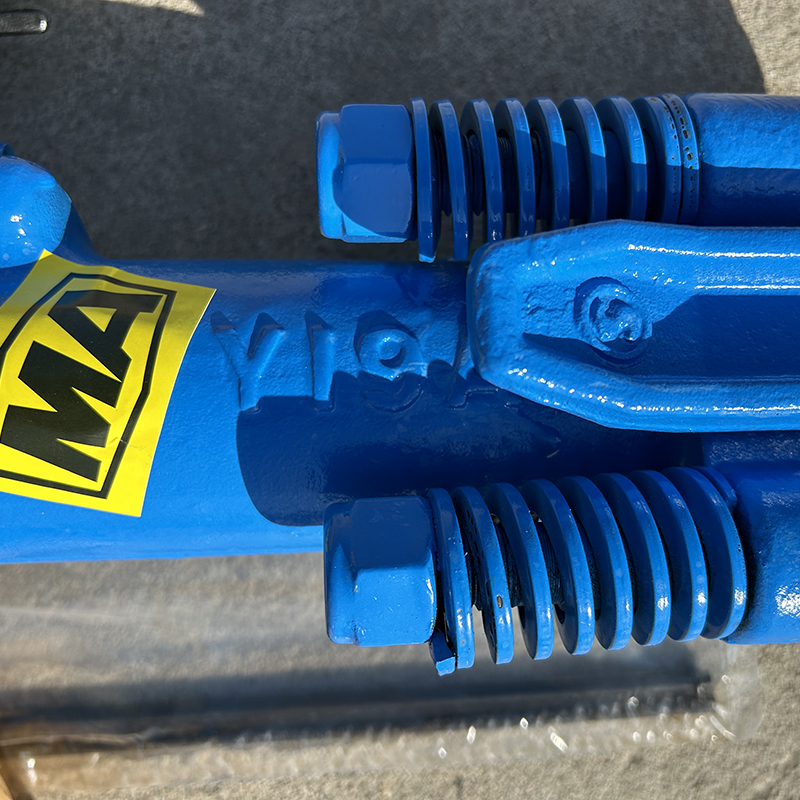

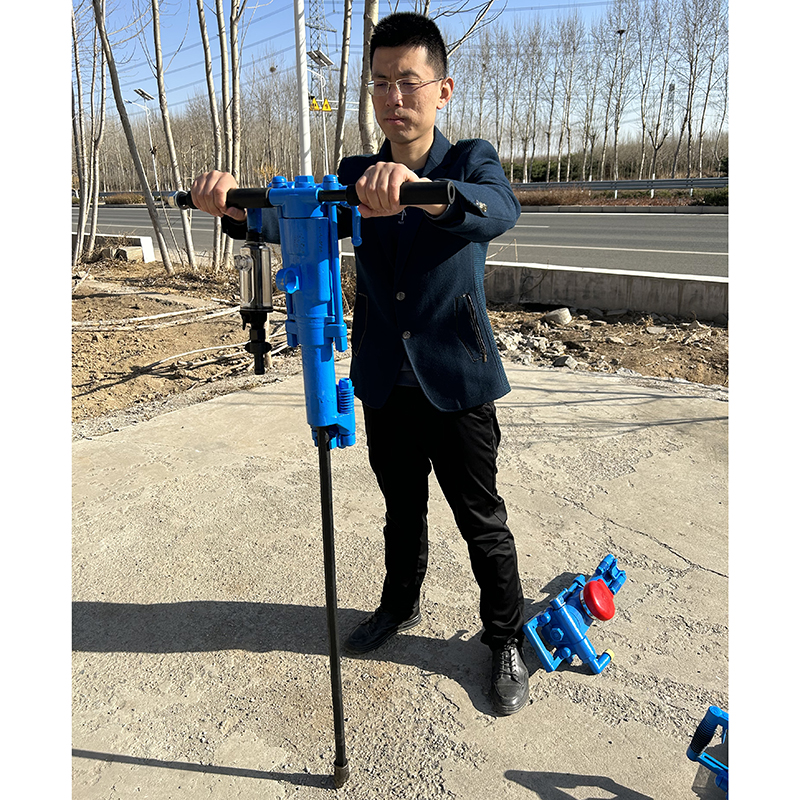

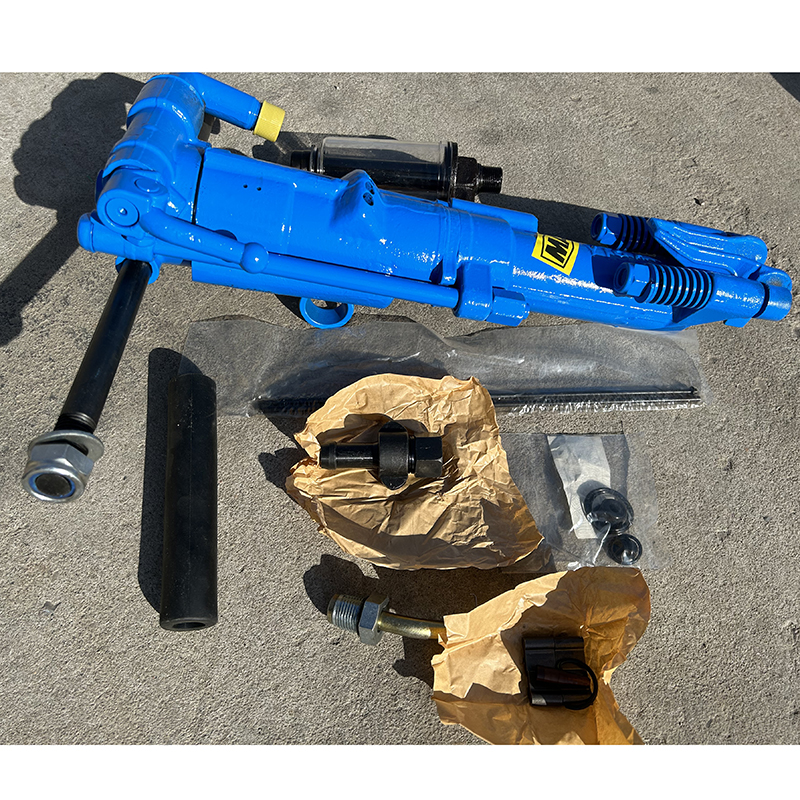

Y19A Pneumatic Hand Held Rock Drill Images
