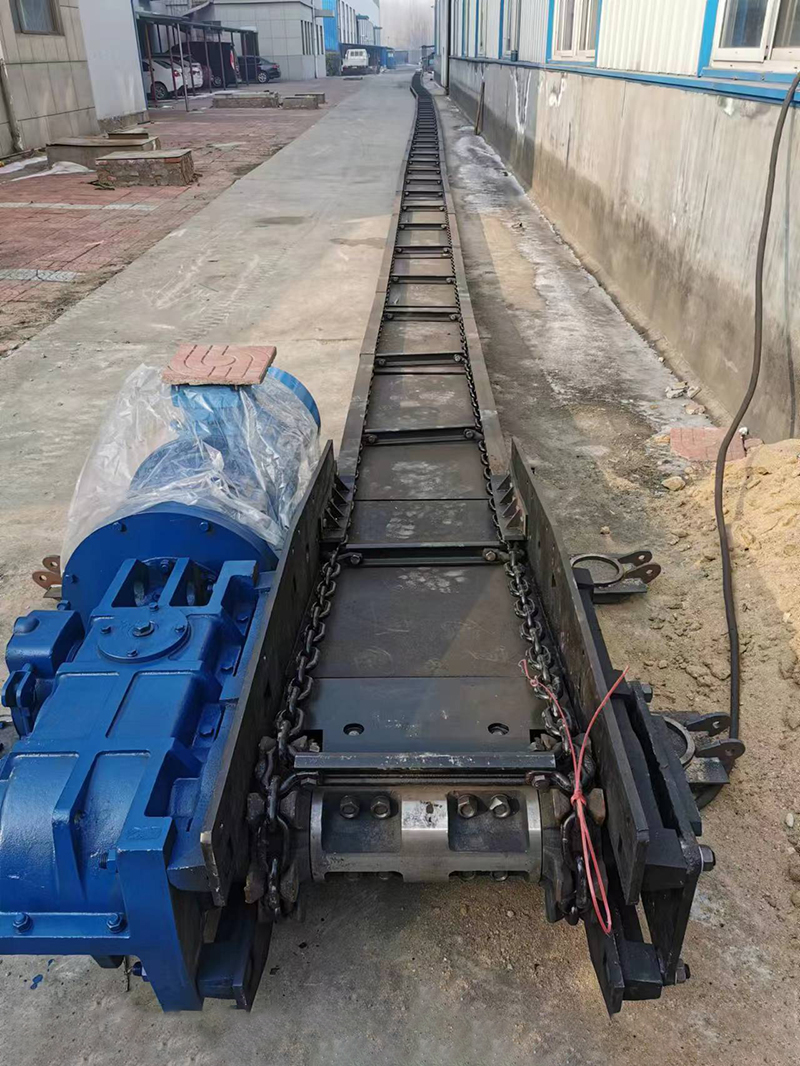

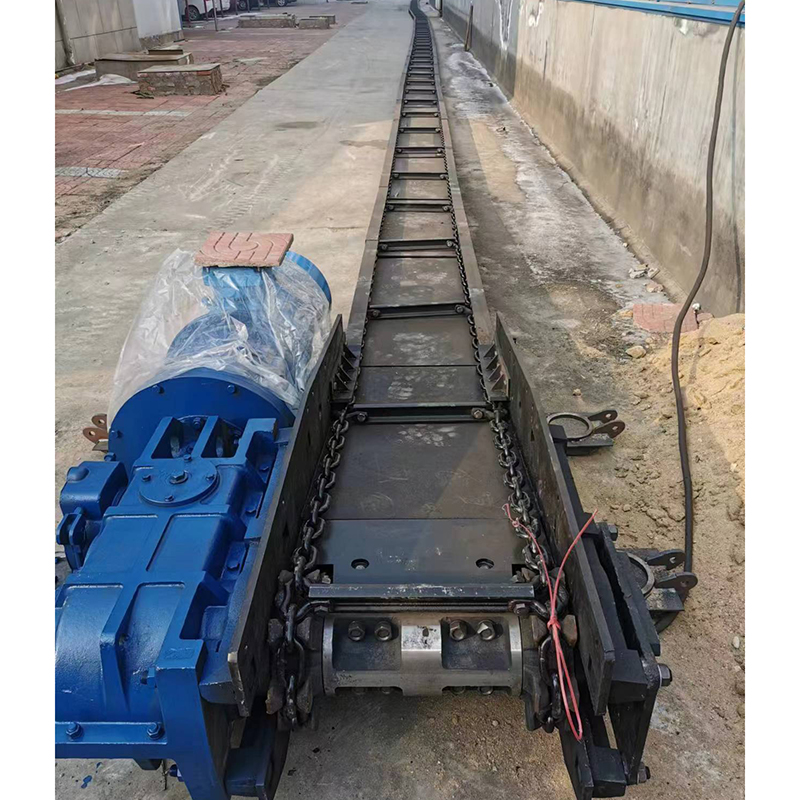

SGB Scraper Chain Conveyor
SGB Scraper Chain Conveyor Machine is more suitable for hard coal, large blocks or more inner dirt band conveyor coal. The scraper conveyor is designed to mainly for horizontal transportation in the underground mining .
SGB Scraper Chain Conveyor Parameter
|
Model |
SGB420/22 |
SGB420/30 |
SGB420/40X |
SGB620/40 |
SGB620/55) |
SGB620/80 |
|
|
Delivery Capacity (t/h) |
60 |
80 |
100 |
150 |
150 |
150 |
|
|
Standard length(m) |
80 |
100 |
100 |
100 |
100 |
160 |
|
|
Chain speed(m/s) |
0.88 |
0.88 |
0.86 |
0.86 |
0.86 |
0.86 |
|
|

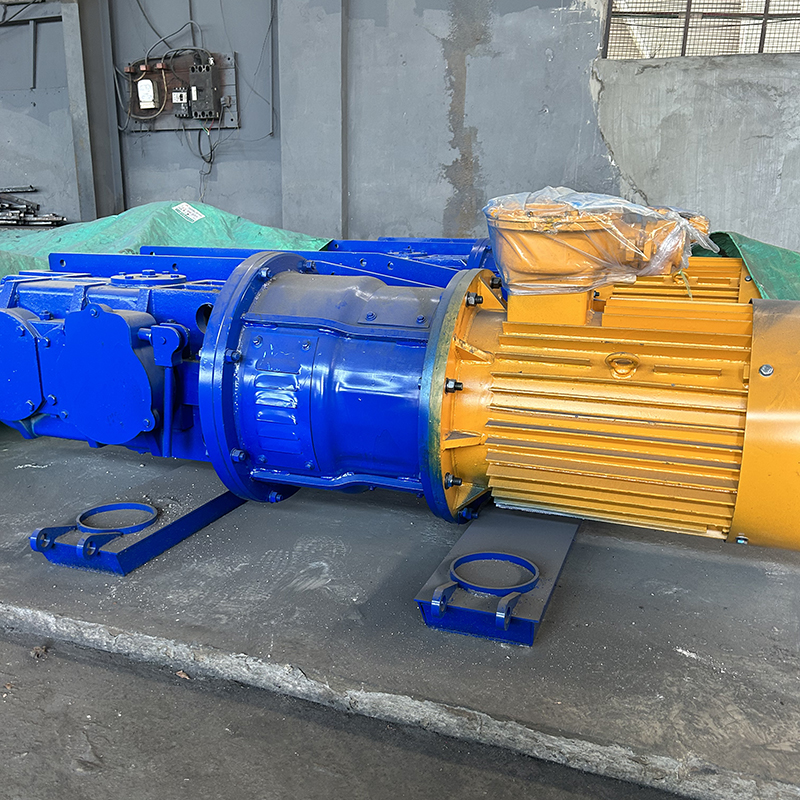

Electric motors |
Model number |
JDSB-22 |
JDSB30 |
JDSB40 |
DSB40 |
DSB55 |
DSB40 |
|
Power(kW) |
22 |
30 |
40 |
40 |
55 |
2*40 |
|
|
Voltage(V) |
220/380 |
380/660 |
380/660 |
380/660 |
380/660 |
380/660 |
|
|

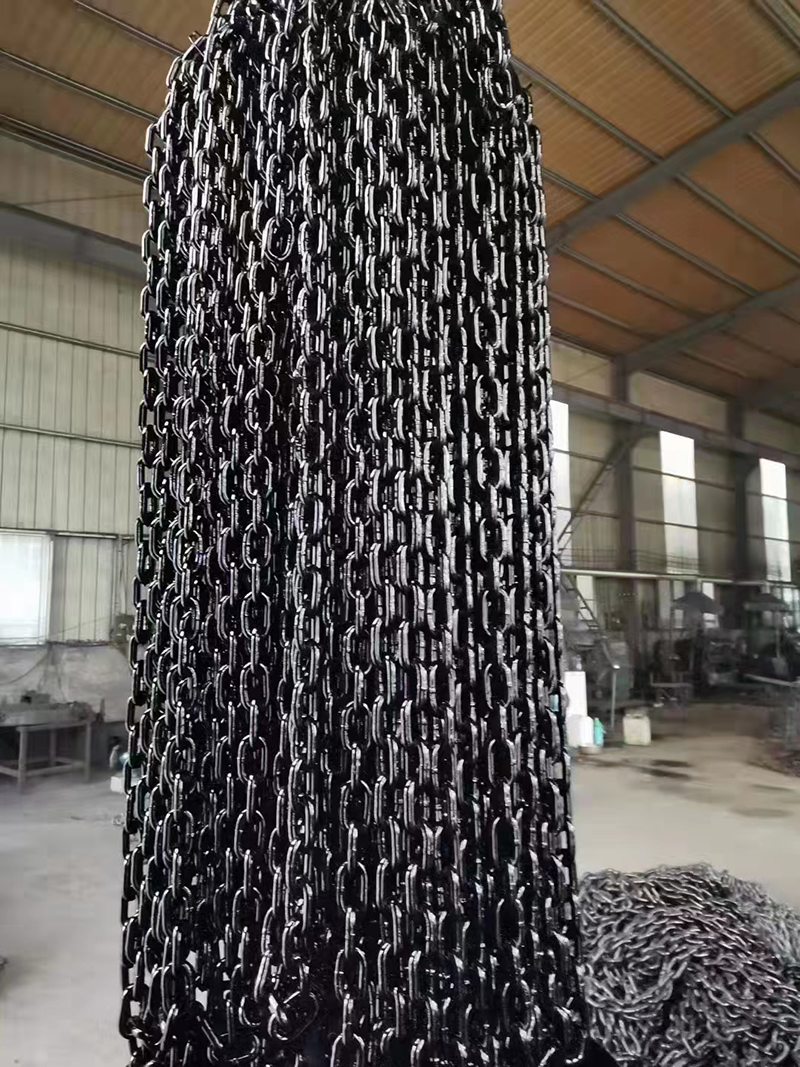

Scraper chain |
Form |
Side double-stranded |
Side double-stranded |
Side double-stranded |
Side double-stranded |
Side double-stranded |
Side double-stranded |
|
Chain size(mm) |
14*50 |
14×50 |
18×64 |
18×64 |
18×64 |
18×64 |
|
|
Breaking load(KN) |
≥250 |
≥250 |
320 |
≥320 |
≥320 |
≥320 |
|
|
Middle Flute size (L x W x H) |
1200×420×150 |
1200×420×150 |
1200×420×180 |
1500×620×180 |
1500×620×180 |
1500×620×180 |
|
|
Total weight(t) |
8.5 |
10.6 |
16 |
17.8 |
17.9 |
28.6 |
|
