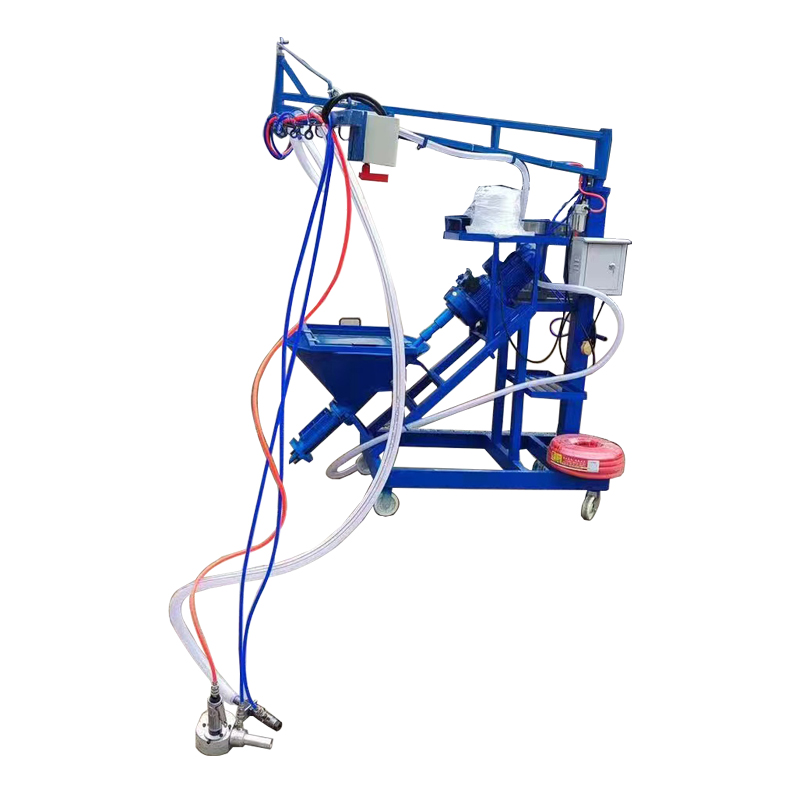

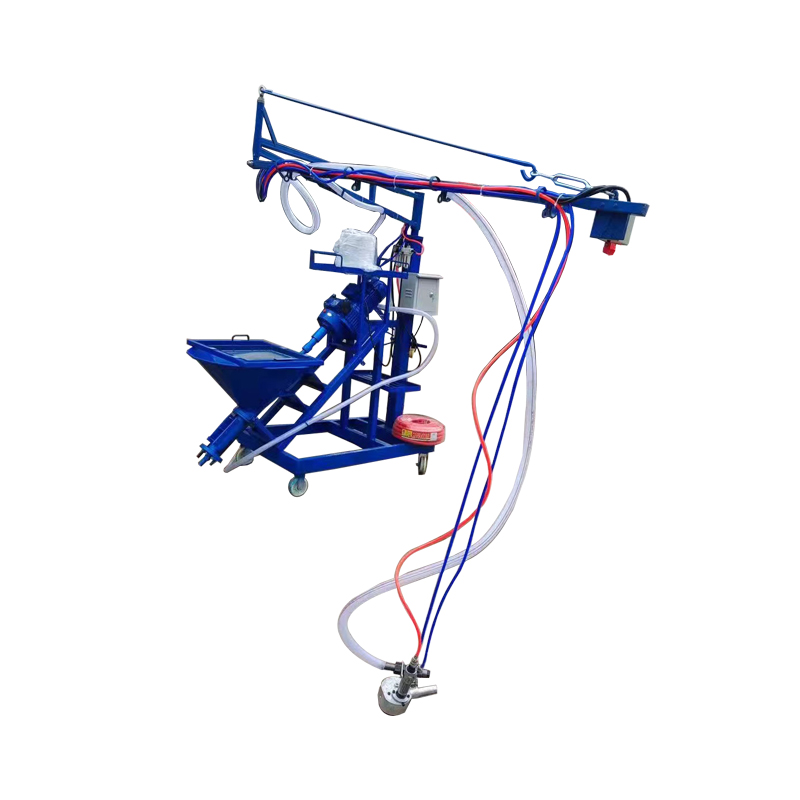

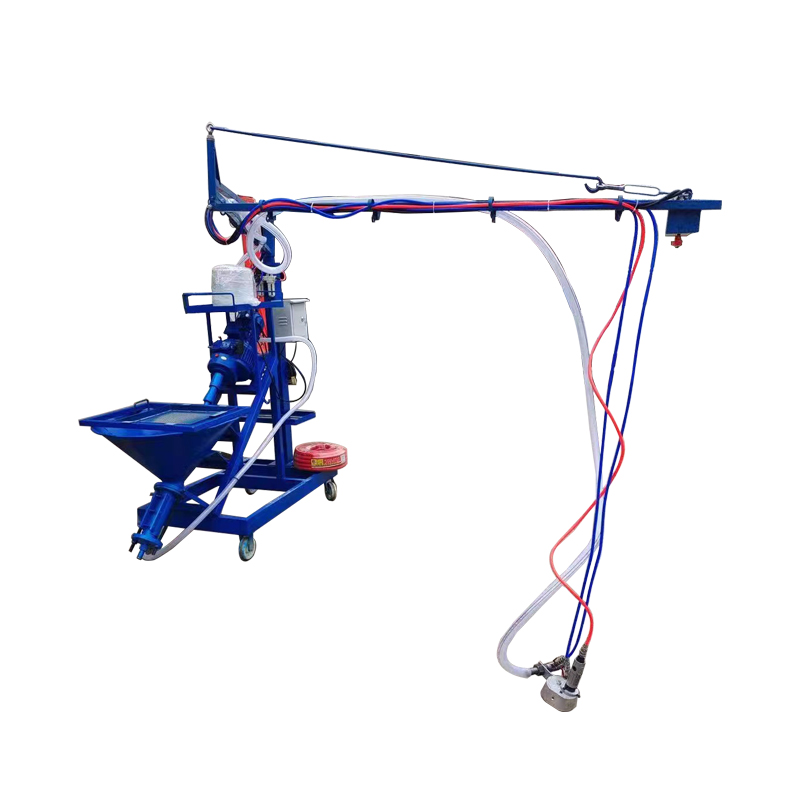

MK9000 GRC Spray Machine

• Conveying capacity*: 300-1600kg/L
• Production efficiency 200-400㎡/h
• Conveying pressure*: 30 bar
• Air requirement: 1500 l/min, 8 bar
• Power supply: 380 V, 50 Hz
• Pumping motor: 3 kW
• Power cable: 5x4 mm2
• Fuse protection: 3x25 A
• Remote control: Pneumatic
• Conveying hose: Ø 25 mm
• Hopper content: 60 l
• Dimensions (L/W/H): 1400/1000/2200 mm
• Total weight: 220kg

Glass Reinforced concrete or GFRC is the latest in concrete technology, the AR Glass in the GRC is the secret to making concrete strong yet light enough for many applications in architecture, garden and home furniture, and decorative design.

The GRC machine is simple in its design, with easy to use, two stage trigger with glass infusion on demand. The glass reinforced cement machine comes with a high speed sheer mixer that creates a creamy, light texture for the GRC machine to atomize and spray. It also comes with a texture spray gun for finishing products with a surface that is both decorative and non-slip, this surface finish is also good for hiding a joint in a mould, to create a seamless product. The GRC High speed sheer mixer is easy to use and has a pneumatic lift ram and has variable speed control for the mixing blade.

GRFC Cement Spray Unit

The Robinson GRC or GRFC spray unit is a pump and spray system for Glass Reinforced Fibre Cement that will spray the cement slurry and chopped glass fibre onto a mould.

Torque

A long wearing cavity displacement pump is directly driven by an electric motor controlled by a Variable Frequency Drive. This method enables a small motor through a gearbox to drive the pump with vastly increased torque.

Clean Up

Clean up of the S/S hopper and pump is extremely easy and efficient.

Maintenance

Almost no maintenance is required on the pumping system as there are no wearing seals.

Chopper

A pneumatic driven glass chopper is attached to the gun and chops and sprays through the centre of the gun.

Cement slurry

Cement slurry is pumped and sprayed through an annular around the chopped glass fibre resulting in a wetted sprayed matrix.

Versatile

The unit can be mobile with a pantograph boom or fixed station with boom.

MK9000 GRC Spray Machine Parameter
